Easy to install
① Space saving, compact design
② Multiple connectors can be used in one waterproof gel box
Mixing and hardening can save valuable time
Use, further saving junction box space
③ Innovative design makes use more convenient
Stored and ready for use at any time
④ Supports quick rewiring and allows for circuit expansion at any time
Easy to install
① Space saving, compact design
② Multiple connectors can be used in one waterproof box
Mixing and hardening can save valuable time
Use, further saving junction box space
③ Innovative design makes use more convenient
Stored and ready for use at any time
④ Supports quick rewiring and allows for circuit expansion at any time

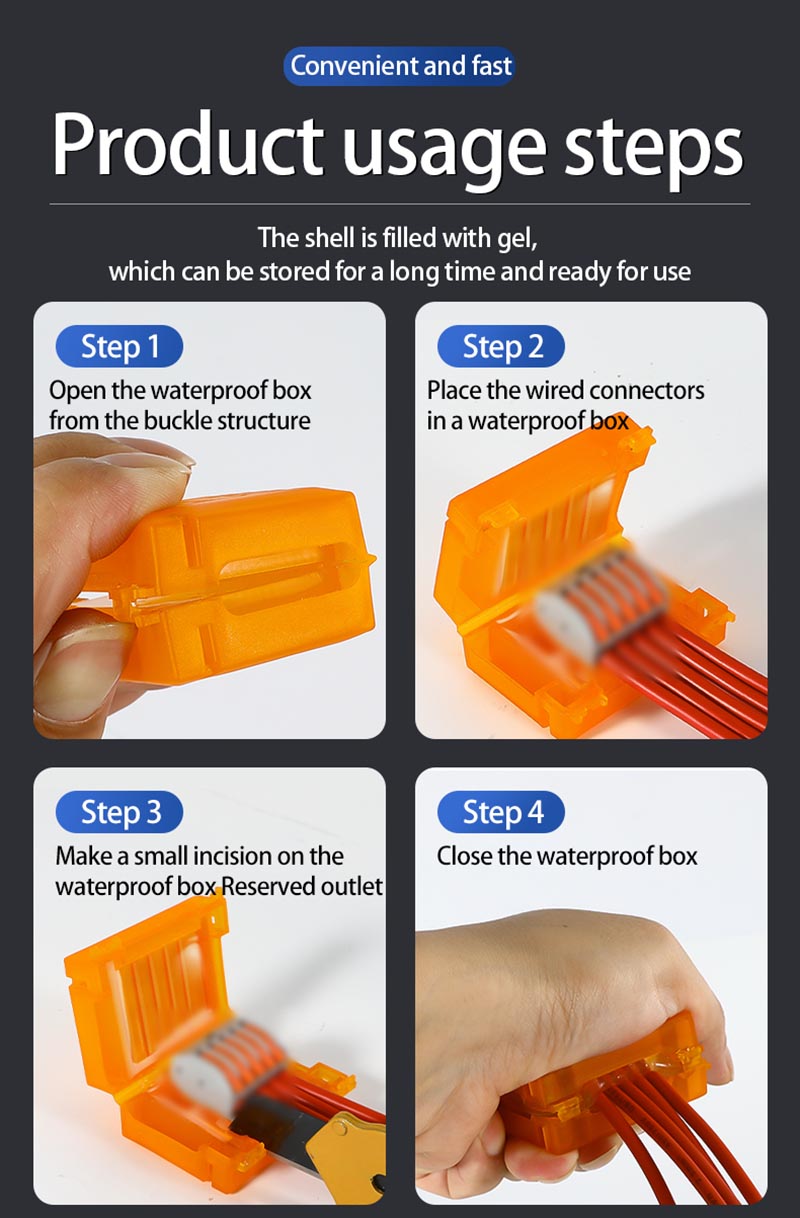

Quick installation
① Direct use, no need for gel material

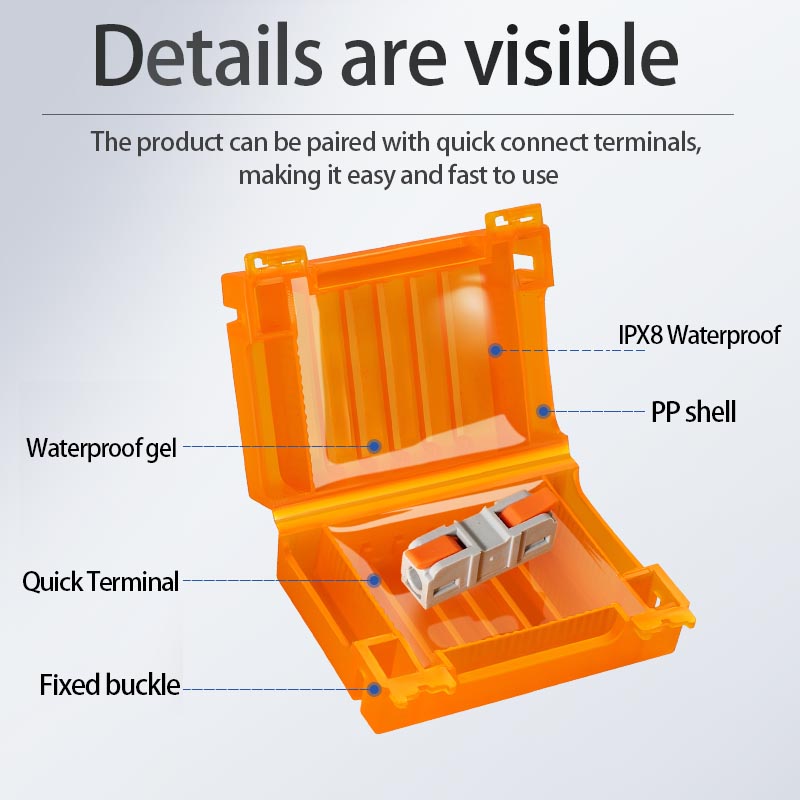

② The shell has been filled with gel, which can be stored for a long time

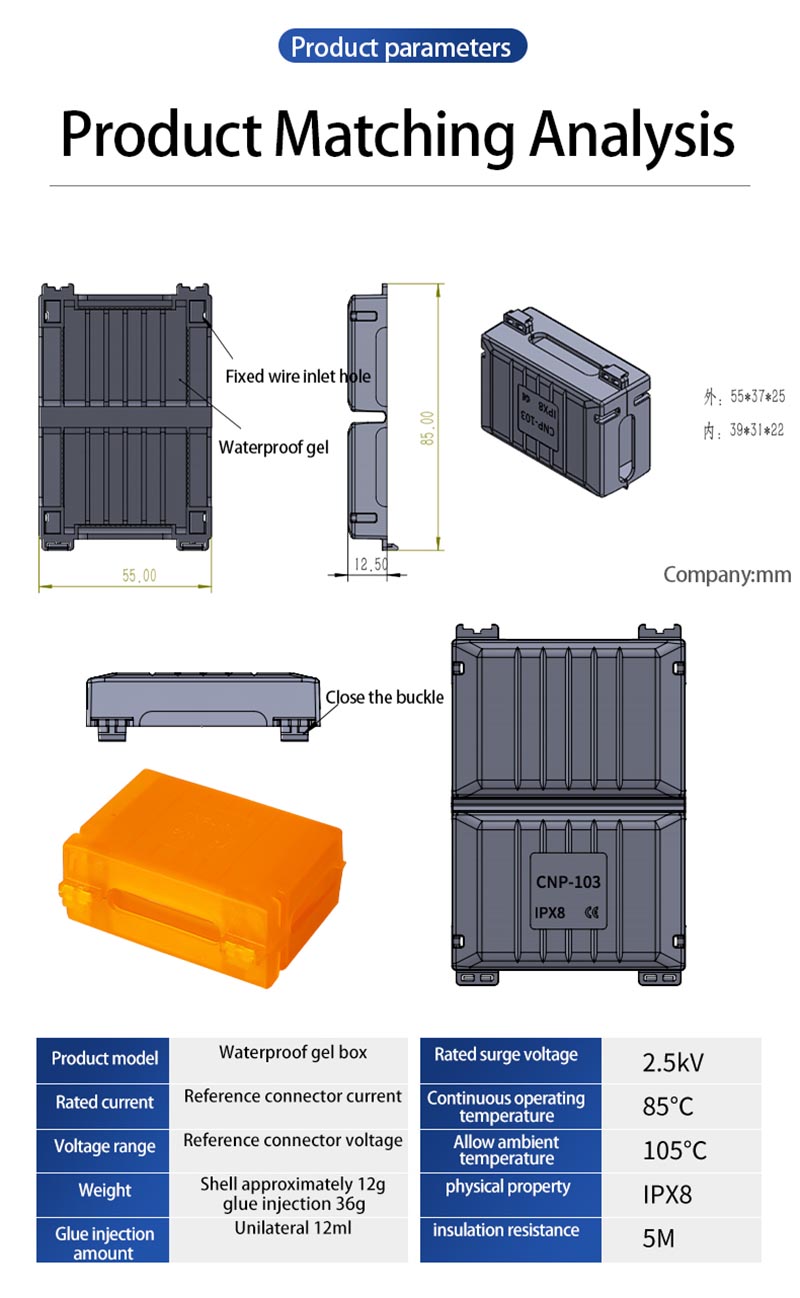

Voltage range: Refer to connector voltage
Rated current: Refer to connector current
Rated surge voltage: 2.5kV
Insulation resistance: 5M
Continuous operating temperature: 105 ℃
Allowable ambient temperature: 85 ℃

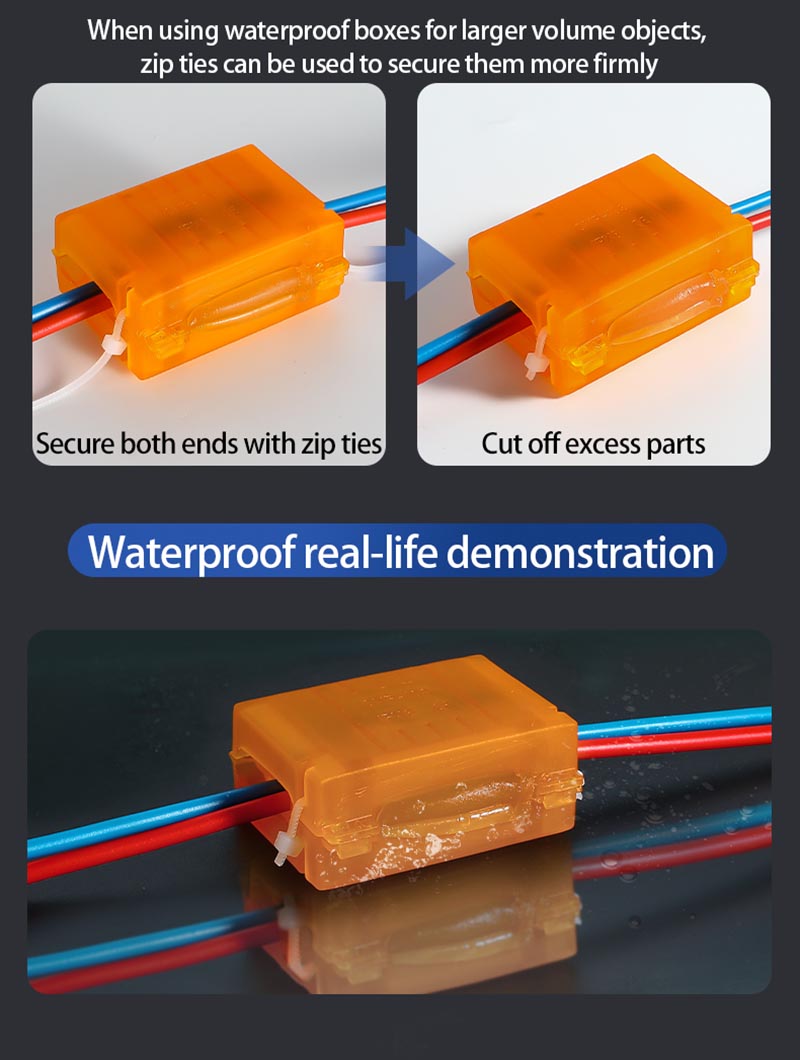

physical property: IPX8
Since the gel used does not contain dangerous substances specified in CLP, it is suitable for long-term storage
1. How to choose how many holes of connectors to use
Every connector, regardless of the number of holes, is internally conductive! Therefore, we need to connect several wires together
Just use connectors with a few holes. For example, a 5-hole connector can connect 5 wires, and if wires need to be connected
There are only four, so leaving one hole empty is enough.
Due to the fully conductive nature of each connector, it is not possible to insert live, neutral, and ground wires into the same connector
Otherwise, it will cause a short circuit. Therefore, in any case, one live wire must be used, one neutral wire must be used, and one ground wire must be used!
2. Can wires of different thicknesses be connected to the same connector
The springs in each hole of the connector are independent, therefore, wires with different cross-sectional areas only

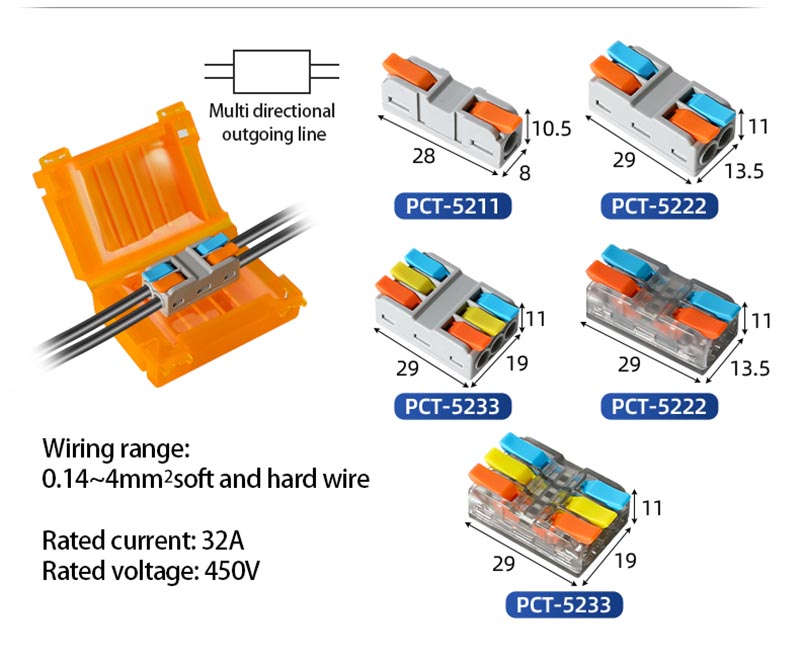

It should be safe and reliable to use within the wiring range of the connector! For example, 221-415, applicable wires
For a 0.14-4mm ² soft and hard wire, when a hole is connected to a 0.14mm ² soft wire, then a 4-plat hard wire is inserted
Insert the wire into any other hole, and you can also insert another 2.5mm ² hard wire into another hole
The remaining holes are empty and can be used for backup wiring, which is safe and reliable!
3. Why are the incoming directions of connectors all on the same side
Due to the fact that in practical applications, the wires to be connected in the junction box need to be pulled out of the junction box and connected externally
Therefore, both incoming and outgoing lines will be in the same direction, so the connector's incoming line design should be in one direction
Can be used more conveniently. (In some individual cases where junction boxes are not used, it is a different matter)
1.Q: Are you manufacturer or trade company?
A:We are manufacturer and specialized in wire connector more than 10 years
2.Q: Can you provide samples ? Are the samples free ?
A：Yes,we can provide free samples if quantity not too much but pay delivery fee before delivery
3.Q : Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before. About customized packing,you send packing details and dimension,we will calculate packing fee.
4.Q: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T and PayPal(100% before delivery), And you can pay money In RMB.
5.Q : How to ship my order ?
A：For small package, we will send it by Express, such asDHL,FedEx,,UPS,TNT,EMS.That’s a Door to Door service. For big packages, we will send them by Air or By sea or railway transportation.
